O RSV-5700 é a versão vertical da lâmina do popular RSH-5700.
A orientação vertical das lâminas permite que a chuva escorra facilmente ajudando o RSV-5700 alcançar o melhor fluxo de ar, defesa contra chuva e combinação de eficiência espacial de qualquer grelha no mercado, com defesa de chuva classe A até 3. 5 m/s.
Apresentando um perfil complexo de lâmina de alumínio extrudido que torce o ar duas vezes, este sistema de grelha de alto desempenho foi projetado para fornecer máxima defesa contra a penetração de água, mantendo excelentes características de fluxo de ar.
The highly robust 1.52mm extruded blades are up to three times thicker than traditional rolled louvre blades and are able to span an exceptional 3.6m.
Por que RSV-5700
- unique design twists air twice to remove rain
- excelente Classe A defesa da chuva até 3. 5 m/s
- “Very Good” Airflow Class 2 rating
- tested to BS EN 13030:2001 & AMCA standards
- designed with spacial efficiency in mind
- space saving louvre depth of only 129mm
- save over 70mm compared to triple bank louvres
- robust blades up to 3x thicker than rolled blades

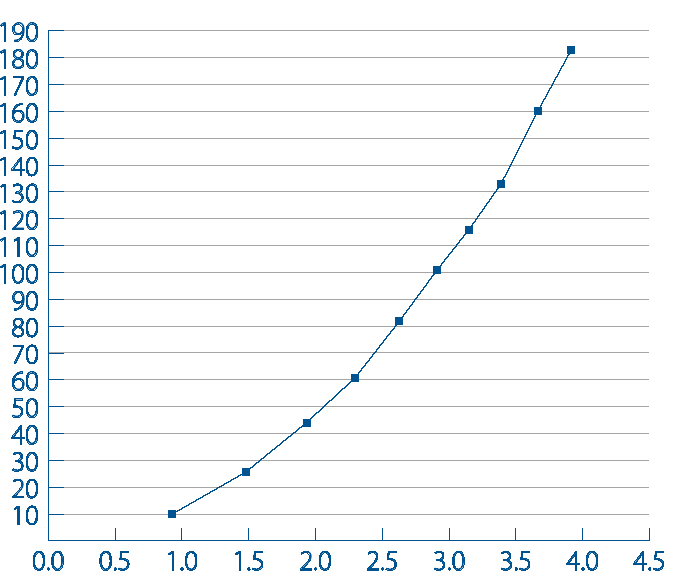

Performance Data
Testing in accordance with AMCA:
| Core Ventilation Rate | 0,0 | 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 | 4,5 | 5,0 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rain Defence Class | A | A | A | A | A | A | A | A | A | A | A |
| Effectiveness Ratio | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 99.8% |
| Airflow Class | 2 | Airflow Coefficient Ce (Intake) | 0,33 | ||||||||
Testing in accordance with BS EN 13030:2001:
| Core Ventilation Rate | 0,0 | 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 |
|---|---|---|---|---|---|---|---|---|
| Rain Defence Class | A | A | A | A | A | A | A | A |
| Effectiveness Ratio | 100% | 100% | 100% | 100% | 99.9% | 99.8% | 99.8% | 99.8% |
| Airflow Class | 3 | Airflow Coefficient Ce (Intake) | 0,297 | |||||
- Material: Aluminium.
- Blade pitch: 51 mm.
- Louvre depth: 129 mm.
- Louvre blade thickness: 1.52mm.
- Head, cills, jambs and mullion thickness 1.91mm.
- Tamanho máximo da unidade autossuficiente 3m de largura 2x. 5m alto.
- Combine units to suit any requirements.
- Finish:
- Mill finish aluminium.
- Anodised – clear or coloured
- Polyester powder coated.
- Zero VOC fluoro-polymer powder coated.
- Guards:
- Bird/vermin guards and insect guards available.
- Note: Guards create additional resistance to airflow and reduce flow rate, louvre sizes should be adjusted allow for this.
- Blanking panels:
- Single skin and insulated panels are available.
- NBS clauses:
- L10 Windows / Rooflights / Screens / Louvres
- 650 METAL LOUVRES
- H11 Curtain walling
- 140 Louvres
- L10 Windows / Rooflights / Screens / Louvres
- NBS Create clause:
- 45-25-50/305 Aluminium louvre panel units
